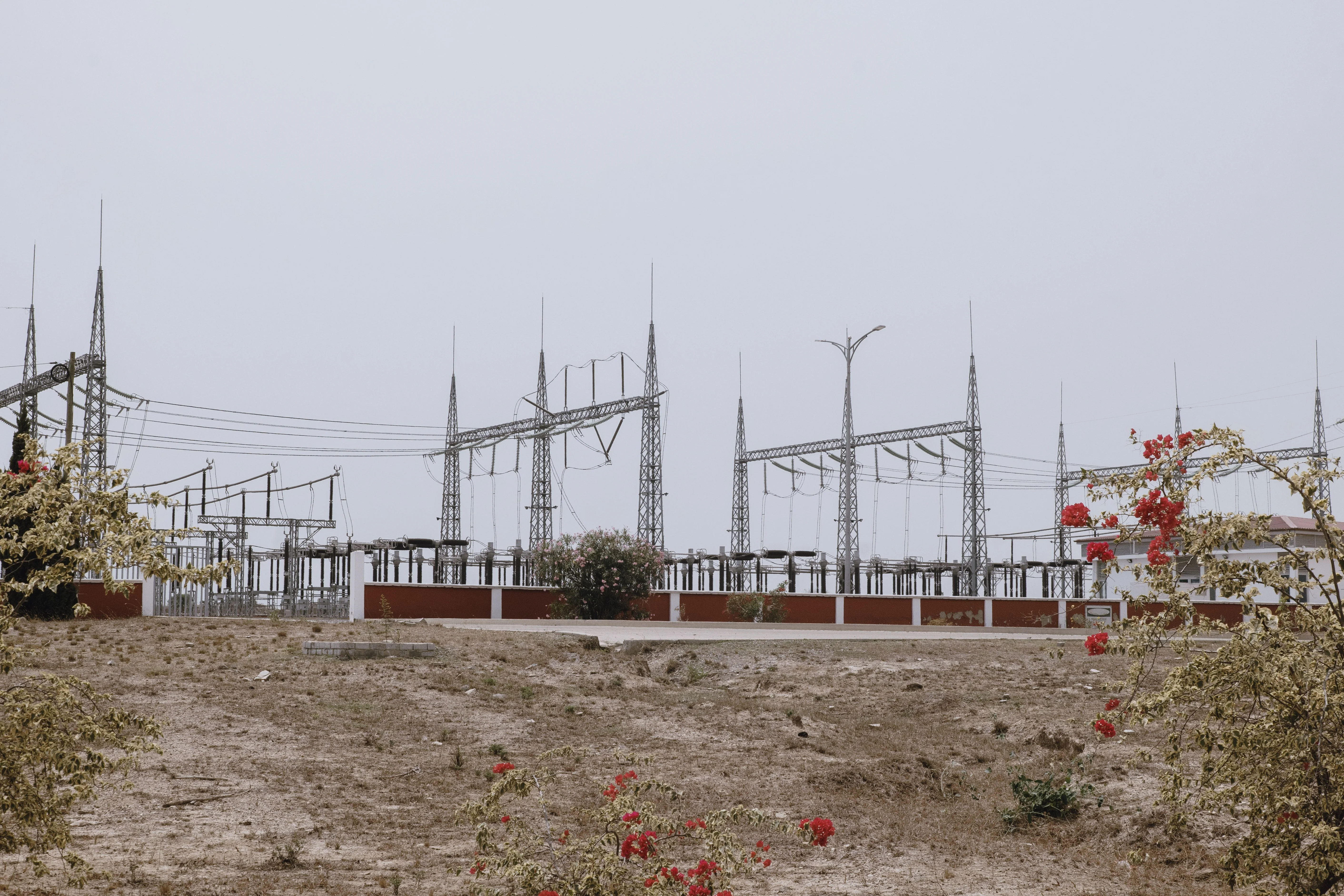

High Voltage Substation Pooling Optimization for Renewable and Storage Complexes
Shared pooling substation design for renewable and storage complexes: capacity economics, connection architecture, loss allocation and governance.
Shared pooling substation design for renewable and storage complexes: capacity economics, connection architecture, loss allocation and governance.
How shared pooling substations allocate capacity across renewable and storage tenants: sizing economics, connection architecture, loss allocation, and the governance that keeps shared assets fair.
India builds renewable capacity in complexes, and complexes share substations. A pooling station serving solar, wind, and storage tenants economizes on the scarcest grid resources, transmission bays, transformer capacity, and right of way, but it creates an allocation problem that pure single-tenant design never faces: whose energy gets the shared capacity, who pays for its losses, and who decides when the plan and the physics disagree. Pooling optimization is the discipline of designing shared infrastructure so that the economics, the electrical behavior, and the governance all converge on the same answer.
The economic case for pooling is straightforward arithmetic, reinforced by Indian transmission access rules. A 220 kV or 400 kV substation bay and dedicated evacuation corridor carry fixed capital that a single mid-size storage or generation project rarely amortizes comfortably, whereas multiple co-located tenants sharing a pooling station amortize the switchyard, protection systems, control infrastructure, and operations crew together. Under the CERC (Connectivity and General Network Access to the inter-State Transmission System) Regulations, 2022 (GNA Regulations) and subsequent amendments, co-located or clustered Renewable Energy Generating Stations (REGS) and Energy Storage Systems (ESS) can explicitly share dedicated transmission systems and sub-pooling stations through documented mutual cost- and O&M-sharing agreements, compressing both bay utilization and interconnection timelines.
The electrical case is equally strong but more subtle. Storage colocated at a pooling station provides services to the whole complex, absorption of midday solar surplus, ramp support during the sunset transition, and reactive power for voltage management across the shared collector system. A pooling design that treats storage as just another tenant forfeits these system values; a design that allocates connection capacity with the storage interaction in mind captures them, and the difference shows in the losses, the curtailment, and the voltage profile of the whole complex.
This article covers the design decisions in sequence: sizing the shared asset against the tenant portfolio, choosing the connection architecture, allocating losses and costs between tenants, protecting and controlling the shared system, and governing the whole arrangement across the decades that shared infrastructure outlives its first tenants. It reflects practice on Indian renewable complexes where pooling is now the default rather than the exception.
Pooling economics begin with diversity. Solar capacity peaks at midday, wind capacity peaks across a broader and less predictable envelope, storage charges from whichever is abundant and discharges into the evening peak, and load-side draw, where the complex serves industrial tenants directly, adds a fourth profile. The pooled peak is smaller than the sum of individual peaks, which is the entire economic engine of pooling: the shared transformer and bay capacity sized to the diverse peak serves all tenants at a fraction of the individual-connection cost.
The sizing decision is a portfolio decision, not an electrical one. Over-sizing buys headroom for future tenants and expansion tranches, at the cost of idle capital and standing charges until the tenants arrive. Under-sizing locks the complex into congestion economics, where the last tenants to connect curtail first and the expansion path, a second transformer, a bay extension, runs through a fresh approval cycle at escalated prices. The sizing study weighs the expansion option value against the carrying cost, and the right answer depends on the complex growth trajectory more than on the electrical engineering.
Storage changes the sizing arithmetic in both directions. It adds load to the shared system during charging, sized to its power rating, but it also flattens the pooled peak, absorbing surplus that would otherwise curtail and discharging through the evening when other tenants are quiet. A sizing study that models storage as a simple load double-counts its charging draw and misses its flattening contribution; a study that models the actual dispatch behavior against the complex profile captures the interaction, and the difference between the two studies can be an entire transformer rating.
The staged expansion design completes the sizing discipline. Shared substations that anticipate growth—physical space provisioned for a second power transformer bay, busbar sections rated for the ultimate short-circuit and continuous current configuration, and protection schemes pre-wired for staged feeder additions per the CEA (Technical Standards for Construction of Electrical Plants and Electric Lines) Regulations, 2022—expand at marginal cost and minimal outage disruption. Because pooling substations operate for 25 to 35 years while tenant portfolios evolve through phased builds and storage augmentation, the expansion path is a first-order design deliverable rather than a future retrofit.
The voltage hierarchy decision structures everything downstream. Complexes pooling at 33 kilovolts with a single step-up to the transmission level suit modest portfolios and compact geography; larger complexes run 33 and 132, or 66 and 220, hierarchies with intermediate collection stages, trading additional transformer investment for collector cable economics and loss reduction. Storage placement within the hierarchy is a genuine design choice: at the low-voltage collector for maximum interaction with individual tenants, or at the intermediate bus for system services across the whole complex, and the choice follows from what the storage asset is contracted to do.
Busbar configuration governs reliability economics. Single-bus designs minimize capital but expose all tenants to common-mode outage risk; sectionalized buses with bus-couplers isolate faults to segments at moderate cost; and double-bus arrangements, standard at transmission pooling stations, provide maintenance access without outage and full redundancy for the critical tenants. The configuration decision prices each tenant exposure profile: a storage asset contracted for availability suffers more from pooling station outages than one contracted for energy delivery, and the architecture should reflect that asymmetry.
Collector routing deserves terrain-informed civil and drainage engineering, with a pooling-specific reliability overlay: collector cables from multiple tenants routed in a single shared trench create common-mode outage dependencies, because a single excavation strike, moisture ingress event, or joint fault affects every tenant in that corridor. Separating critical battery and generator feeders across physically independent trenches or duct banks, documented in the project interface register, converts that shared-outage tail risk into a modest, explicitly priced civil decision.
Reactive power strategy binds the architecture together under the CEA Technical Standards for Connectivity to the Grid (which require 0.95 lagging to 0.95 leading reactive capability at the Point of Interconnection). Long collector cables generate charging MVAr at light load while step-up transformers absorb reactive power under heavy dispatch, shifting bus voltage across the complex. A coordinated design allocates switched capacitor/reactor banks at the pooling bus and dispatches inverter reactive capability through the shared Power Plant Controller (PPC) rather than letting individual tenants fight each other's voltage loops.
Shared infrastructure losses follow currents, and currents follow dispatch, so loss allocation between tenants is a settlement design problem before it is an electrical one. The allocation methods in practice range from simple pro-rata by contracted capacity, crude but auditable, to time-series allocation computing each tenant share of actual losses hour by hour, precise but data-intensive. The choice prices the trade between settlement simplicity and fairness precision, and tenants with storage, whose dispatch moves losses across the complex, should expect and accept the data-intensive methods because the simple methods charge them for losses they actually remove.
The transformer loss economics deserve explicit treatment because storage sits at the center of them. Each transformation stage carries standing losses that run regardless of throughput and load losses that scale with the square of current, and storage dispatch that flattens the pooled profile reduces the load-loss component for everyone. A loss allocation that ignores this interaction systematically overcharges the storage tenant and undercharges the generators, and tenants negotiate these formulas with contractual intensity because the amounts compound over decades.
Capital cost sharing follows the allocation of benefit rather than of usage. Tenants connecting at different times, with different capacity draws and different reliability requirements, share the initial capital and the expansion capital through formulas that reflect their draw on the shared asset, and the formula design shapes tenant behavior: capacity-based charges incentivize accurate declarations, draw-based charges incentivize efficient utilization, and expansion triggering charges, where the tenant whose connection forces the expansion pays the marginal step, align the growth economics with the parties who create them.
The settlement infrastructure is the enforcement layer for all of the above: metering at every tenant boundary, calibrated and shared; the loss allocation computation, running on telemetry both parties can verify; and the dispute resolution path, defined before the first invoice rather than after. The table below consolidates the allocation methods and their suitability by tenant portfolio, as a design instrument for the sharing agreements that hold pooling economics together.
| Allocation Item | Method Options | Data Requirement | Fairness Precision | Suitability Notes |
|---|---|---|---|---|
| Energy losses | Pro-rata capacity versus time-series | Low versus high telemetry | Coarse versus precise | Storage tenants favor time-series |
| Transformer load losses | Square-law allocation by draw | Hourly per-tenant metering | High | Flattening credit to storage |
| Standing losses | Pro-rata by contracted capacity | Static, simple | Coarse | Acceptable for fixed costs |
| Capital charges | Capacity, draw, or expansion-trigger | Connection data | Structural | Shapes tenant behavior |
| Reactive compensation | Reactive metering per tenant | VAR metering | High | Rewards voltage support |
| Outage exposure | Architecture-allocated, priced | Reliability statistics | Structural | Reflected in reliability choice |
| Operations and maintenance | Pro-rata or usage-based | Activity records | Coarse | Split fixed and variable scope |
| Expansion allocation | Marginal step to triggering tenant | Expansion study | Structural | Aligns growth economics |
Protection coordination at a pooling station is a single electrical problem spanning multiple commercial boundaries. Fault levels from all contributing sources, generators, storage, and the grid itself, must clear selectively, isolating the faulted segment while healthy tenants continue, and the coordination study is a shared artifact that every tenant and the utility review. Storage contributes fault current differently from generation, inverter-limited magnitude but fast response, and the protection design accounts for it rather than importing generator-era settings wholesale.
The control architecture separates local asset protection from shared complex supervision: each tenant manages its own inverters and battery management system, while the shared Power Plant Controller (PPC) and SCADA gateway coordinate reactive power, voltage regulation, and dispatch allocation at the pooling bus, transmitting aggregated and tenant-level telemetry to the RLDC or SLDC as required under CERC IEGC 2023. Boundary Special Energy Meters (SEMs) at each tenant bay and the pooled ISTS/STU interconnection provide auditable 15-minute settlement and loss allocation records, and shared PPC settings must remain version-locked after utility witness testing.
Operations and maintenance organization is the human architecture: a pooling station serves multiple tenants but operates as one facility with one crew, one permit-to-work discipline, and one shift log. The operating agreement defines the authority boundaries, who permits work on shared equipment, how tenant outages coordinate, and how the costs divide, and the well-designed agreement minimizes the coordination friction the arrangement would otherwise generate. Facilities operated under vague agreements generate exactly the friction the pooling economics were meant to avoid.
Cybersecurity at the shared boundary requires CEA Cyber Security in Power Sector compliance and IEC 62443 network zoning across every tenant conduit: the shared PPC and SCADA gateway are the single convergence point where tenant OT networks meet the grid telemetry boundary. Enforcing per-tenant VLAN/firewall segmentation, role-based access control, and annual CERT-In empanelled OT audits with multi-party evidence artifacts prevents one tenant's maintenance laptop from becoming a complex-wide cyber exposure.
Pooling agreements outlive their founding tenants. The complex will change ownership shares, add tenants, expand capacity, and modify dispatch behavior across its life, and the governance that survives is the governance that anticipated change: admission protocols for new tenants, defined at what cost and with what rights; exit protocols for departing tenants, settling their share of the shared asset; and expansion decision rules, defining what triggers a vote, what constitutes consent, and who pays the marginal step.
The regulatory interface shifts as the complex evolves. Connection agreements, transmission access, and scheduling participation attach to the pooled entity rather than to individual tenants, and the entity that holds them must remain stable while its ownership and composition change. The corporate structure choice, special purpose vehicle, joint venture, utility-owned pooling with tenants as customers, each carries different stability properties, and the choice is made once, at formation, under conditions where its consequences are hardest to see.
Dispute design deserves the same seriousness as loss formulas. The disputes that pooling complexes actually experience, curtailment allocation during congestion, outage cost attribution, expansion timing, capital contribution disputes, are all predictable categories, and the agreement that defines resolution paths, expert determination for technical disputes, commercial negotiation windows, arbitration as the backstop, converts them from existential threats into managed processes. Complexes without designed dispute paths resolve their predictable disputes unpredictably.
The throughline across governance design: shared infrastructure works when every mechanism, losses, capital, control, operations, disputes, is priced and contracted rather than assumed. Pooling that begins as an economic partnership and ends as a legal entanglement usually skipped one mechanism, and the ones that survive decades are the ones where somebody wrote down, at formation, the answers to questions the founding parties were too aligned to ask.
The checklist below consolidates the pooling discipline into a design readiness instrument: each row pairs a design or governance decision with the artifact that evidences it and the failure mode that follows when the decision defaults. It serves developers scoping pooling arrangements, owner engineers reviewing designs, and the transmission utilities that ultimately accept the shared connection.
The instrument applies its leverage at formation, when the founding tenants can still design for parties not yet present. Every row that touches governance exists because shared complexes that skipped it discovered the gap later, with new tenants at the table and the founding parties trying to retrofit rules onto relationships already priced without them.
| Design Decision | Evidence Artifact | Design Stage | Failure Mode if Defaulted | Owner |
|---|---|---|---|---|
| Pooled sizing study | Diversity analysis with storage dispatch | Feasibility | Over or under-sized shared asset | Owner engineer |
| Expansion path design | Staged configuration drawings | Detailed design | Escalated expansion later | Owner engineer |
| Voltage hierarchy choice | Loss and cost comparison study | Feasibility | Suboptimal collector economics | Owner engineer |
| Busbar configuration | Reliability assessment per tenant | Detailed design | Common-mode outage exposure | Protection engineer |
| Storage placement | Service interaction modeling | Feasibility | Forefeited system services | Owner engineer |
| Loss allocation method | Settlement formula in agreement | Formation | Tenant disputes over charges | Commercial lead |
| Capital sharing formula | Cost allocation schedule | Formation | Expansion funding disputes | Commercial lead |
| Protection coordination | Shared coordination study | Detailed design | Non-selective fault clearing | Protection engineer |
| Operating agreement | Authority and cost boundaries | Formation | Operational friction, meeting overload | Legal counsel |
| Governance protocols | Admission, exit, expansion rules | Formation | Retrofitted rules, entanglement | Legal counsel |
Capacity savings follow the temporal diversity of the co-located generation and storage profiles rather than any fixed percentage rule of thumb. Complementary solar and wind generation profiles reduce coincident peak export relative to nameplate sum, and adding storage that absorbs midday solar surplus for evening discharge flattens the net transformer loading further—especially where the complex also serves local industrial draw. Because curtailment risk depends on site irradiance, wind shear, contracted GNA capacity, and dispatch rules, an 8,760-hour (or 15-minute interval) time-series simulation against actual dispatch constraints is the mandatory sizing deliverable before committing transformer ratings.
At the bus that matches what the storage is contracted to do. Low-voltage collector connection maximizes interaction with individual tenants, absorbing their surplus behind their transformation stage; intermediate bus connection maximizes system services across the whole complex, voltage support and ramp shaping at scale. Assets contracted for complex-level services belong at the intermediate level; assets contracted behind a specific tenant belong in that tenant collection system. The placement is a commercial decision expressed electrically, and mismatches are expensive to unwind.
Because storage dispatch shapes complex-wide losses, and simple pro-rata methods charge storage for losses it actually removes. A battery charging at midday absorbs solar surplus that would flow through the shared transformers anyway, adding little marginal loss; the same battery discharging in the evening changes transformer loading across the peak. Time-series methods compute each tenant contribution hour by hour and credit the flattening behavior, while capacity pro-rata bills storage a fixed share regardless of its actual effect, which compounds into a material pricing distortion over a contract life.
The models vary: developer consortiums forming a special purpose vehicle that owns the shared asset; the transmission utility building the pooling station and charging tenants through connection frameworks; and hybrid structures where the utility owns the grid-side infrastructure while tenants own the collector system. The choice follows the regulatory context, the financing appetite of the parties, and the operational control preferences, and each model allocates expansion, operations, and residual value differently across the parties, which is why the structure choice belongs at formation with legal and commercial rigor.
Through the admission protocol the governance should have defined at formation: capacity verification against the shared design, connection engineering review against the coordination and protection studies, capital contribution per the sharing formula, and loss-allocation enrollment into the settlement system. The protocol converts admission from a renegotiation of the entire arrangement into a defined process with priced steps, and complexes that lack the protocol admit tenants through bespoke negotiation, which strains every existing relationship each time it succeeds.
